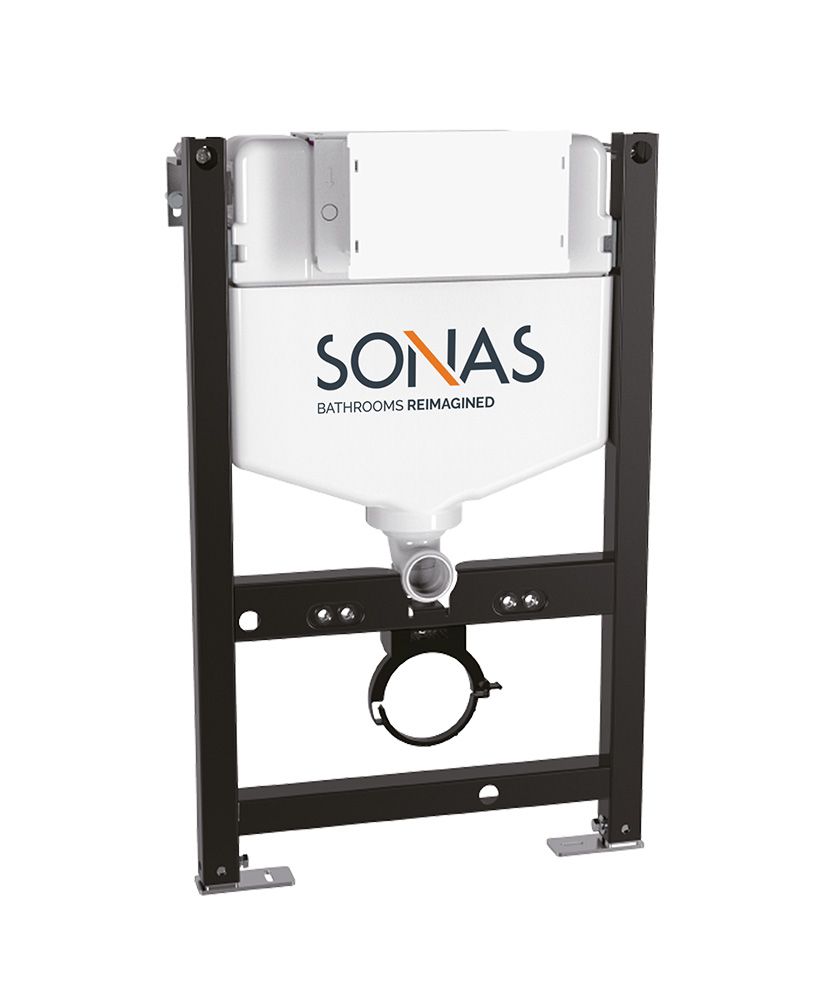

SONAS 820mm Universal Frame & Cistern for Wall Hung WC
£325.00
Unit price perCreate a clean, contemporary wall-hung toilet installation with the SONAS Universal Frame & Cistern.
Designed to provide a strong and reliable support structure for wall-hung WCs, this universal frame incorporates an integrated concealed cistern and offers both front and top operation, giving you flexibility when planning your bathroom.
The dual-flush cistern can be adjusted between 3/6 litres, helping you control water usage while maintaining effective flushing performance.
The frame is suitable for use with wall-hung WCs and is supplied as the frame and cistern only — the WC pan is not included.
Key Features
- Universal frame and concealed cistern
- Suitable for wall-hung WCs
- Front & top operation
- Adjustable dual flush: 3/6L
- Strong concealed support frame
- Compact 160–235mm adjustable depth
- 10-year guarantee
- Contemporary design
- WC pan not included
SONAS lists the product with a 10-year guarantee and confirms that the WC itself is not included.

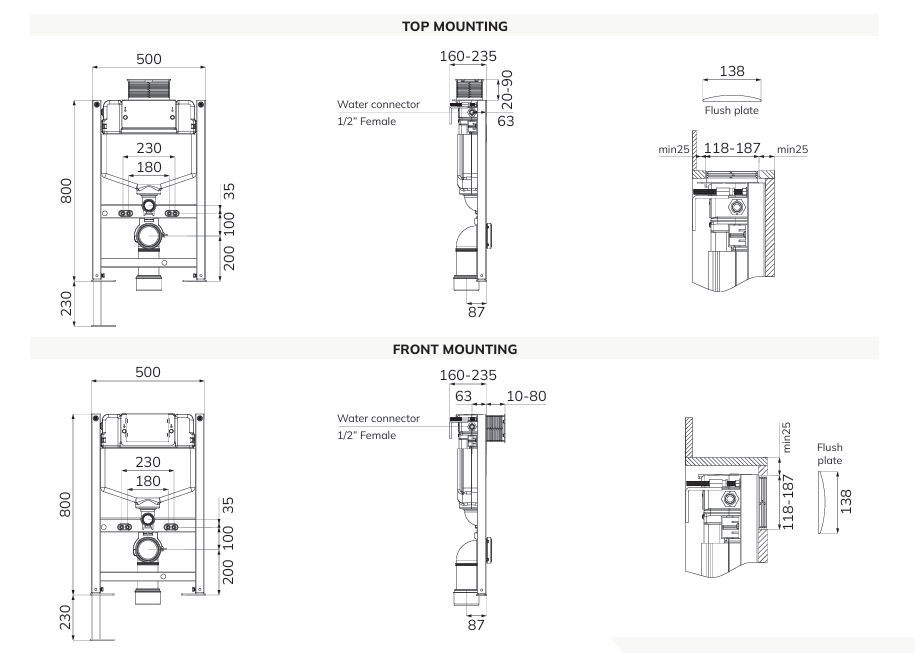

Technical Specifications
| Specification | Details |
|---|---|
| Brand | SONAS |
| Product Code / SKU | USW0547 |
| Product Type | Universal Frame & Cistern |
| Application | Wall Hung WC |
| Width | 500mm |
| Height | 1030mm |
| Depth | 160–235mm |
| Flush | Adjustable Dual Flush |
| Flush Volume | 3/6L |
| Operation | Front & Top |
| Guarantee | 10 Years |
| Style | Contemporary |
| WC Included | No |
