Imex Cast Reinforced Croma 1675×700 Single Ended Bath

Modern durability meets the classic Imperial fit. The IMEX Platto 1675mm Single Ended Bath is a high-performance solution for UK bathroom renovations. Specifically designed at 1675mm (5'6"), it is the exact size required to replace old imperial baths without the need to alter existing wall structures or disturb original tiling layouts.

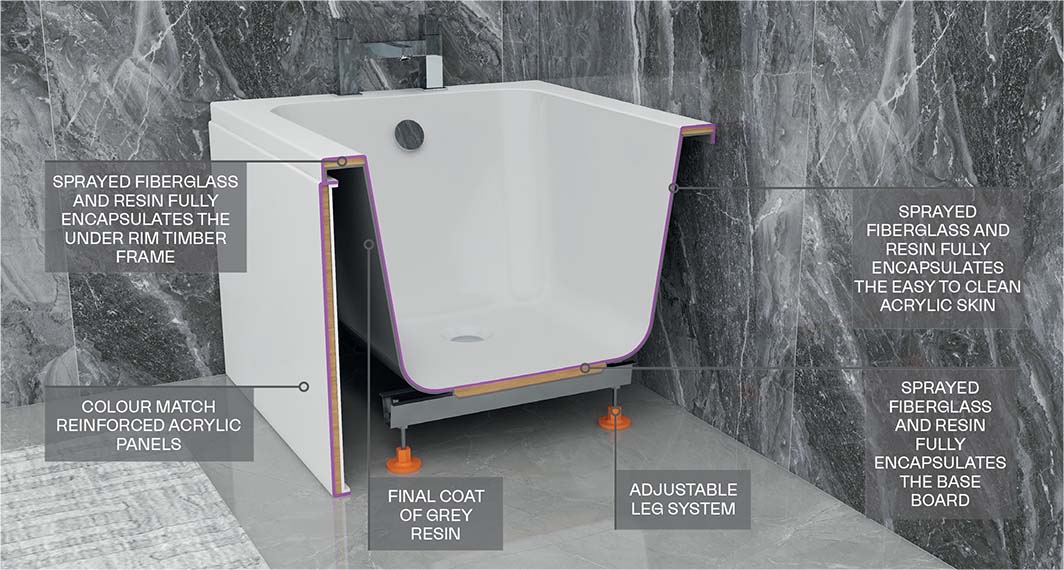

Built using the IMEX Cast reinforcement process, this bath starts with a premium 5mm acrylic sheet, which is then strengthened with a full timber-supported base and rim. A high-density fiberglass spray layer encapsulates the frame, creating a rigid, durable, and highly stable bathing area. Finished with a specialized resin coating, the Platto offers the reliability of a traditional bath with the sleek, easy-clean benefits of modern acrylic.

Key Features

• IMEX Cast Reinforcement: A hybrid construction of hand-finished acrylic and automated fiberglass spraying for a consistent, high-strength build.

• Problem-Solver 1675mm Length: The perfect "retrofit" size for older properties, ensuring a flush fit between walls where a 1700mm bath is too large.

• Full Timber Support: Reinforced at the base and the underside of the rim to prevent bowing or creaking during use.

• Heat Preservation: The reinforced fiberglass layer helps maintain water temperature for longer than standard, unreinforced acrylic baths.

• High-Gloss White Finish: Made from high-quality acrylic that is resistant to staining and easy to buff back to a shine.

• Single Ended Design: Features a comfortable sloped back for lumbar support, with the waste and taps located at the opposite foot end.

Technical Specs

• Dimensions: 1675mm (L) x 700mm (W) x 545mm (H)

• Internal Depth: 400mm (Approx)

• Material: 5mm High-Grade Acrylic + IMEX Cast Fiberglass Reinforcement

• Water Capacity: 180 Litres

• Guarantee: 25-Year Manufacturer’s Guarantee

Norbreck Expert/Design Tip

The Platto 1675mm is our "go-to" bath for landlords and professional renovators. Because it is reinforced with the IMEX Cast process, it feels significantly more solid than a standard DIY-store bath. If you are fitting a bath screen over this unit, the reinforced timber rim is essential; it provides a much more secure anchor point for the screen's bracket, preventing leaks caused by the bath rim flexing over time.
